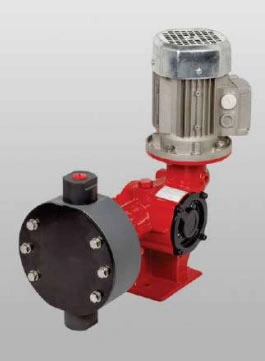

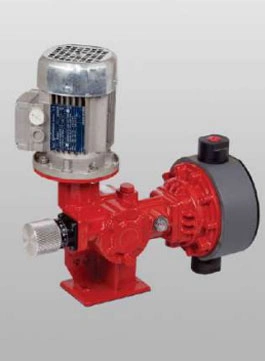

Diaphragm Dosing Pumps Mechanically Actuated: GRM Pumps

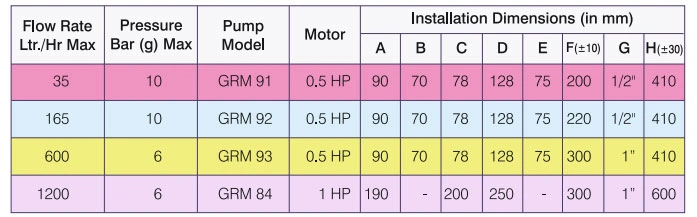

Technical Specifications
Features :
- Glandless design and entirely leak-proof operation
- Mechanically operated diaphragm
- Flow rate linear to stroke length variation
- Steady State Accuracy & Repeatability ±5%
Options :
- Multiple Head with identical or different outputs for each head using single drive
- Automatic flow variation by Variable Frequency Drive (VFD)
List of Accessories :
- Strainer
- Pressure Relief Valve
- Calibration Pot
- Pulsation Dampener
- Variable Frequency Drive (VFD)
- Local Control Panel
Material of Construction Offered :
- SS304, SS304L, SS316, SS316L
- Hastalloy B/C, Alloy 20
- PP/PTFE
- Diaphragm - Specially Designed PTFE Diaphragm
