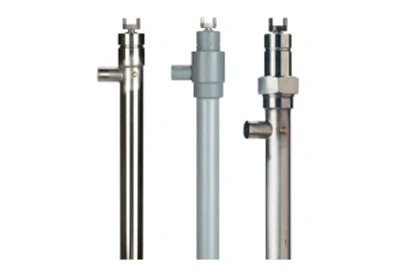

Drum Pumps (TT SERIES)
Sealed, Medium Viscosity/Flow
Sealed pump with PTFE screw-type lifting compressors. Ideal for liquids containing small particulate or solvents. Model STTS constructed of FDA-compliant materials.
Salient Features :
- Interchangeable with motors
- Greater flow control with variable orifice discharge
- FDA-compliant option
- Built-in hose and cord clips
- Vabriable Speed Motors
- ATEX Certifications available
Specifications :
- MOC : Stainless Steel 316
- Flow Rates : 61 LPM
- Head : 9 meters
- Maximum Viscosity : Upto 2000 cP with electric / 50 cP electric motor
- Maximum Specific Gravity : 1.8
- Tube Diameter : 1-1/2” (3.8 cm)
- Discharge : 1” (2.5 cm)
- Tube Lengths : TTS - 27” (69cm), 40” (102cm), 48” (122cm) STTS - 40” (102cm)
- Maximum Temprature : Stainless Steel 316 : 150° F (60° C)
Applications :
- Inks
- Paints
- Solvents
- Sodium hypochlorite
- Food & beverage
- Pharmaceutical
