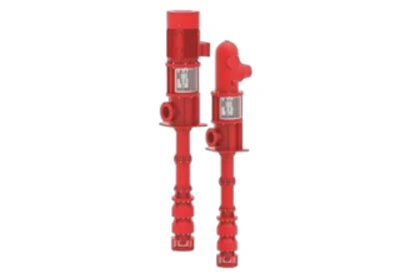

Vertical Turbine Pump (VT SERIES)
Pumps are of single or multistage, consisting of bowl assembly, column assembly and driving unit assembly. Variety of models are available to operate at 50Hz and 60 Hz.
Salient Features :
- All pumps are hydrostatic & performance tested before dispatch.
- The bowl assembly is of bolted construction for allowing easy dis-assembly.
- The pump column pipe is provided in section not longer then 3 mtrs. This facilitates easy assembly & dis-assembly on site.
- The Cast Iron & Steel Component of pump are CED coated for rust protection.
- Sealing arrangement : Packing with Flushing.
- Pre-engineering standard components.
- Space saver design : requires minimum floor space.
- Open line shaft : water-lubricated bowl and line-shaft bearings.
- Stuffing Box (Gland) - (Cast Iron) to press the packing gland into the seal area through bolts.
- Discharge gauge connection.
- Complete in-house fabrication capabilities.
- Drivers : Electric Motor drive or Diesel Engine drive.
- Excellent mechanical and hydraulic design characteristics for efficient performance.
Specifications Technical Data :
- Flow Range : Upto 600 m³/Hr
- Head Range : Upto 200 meters
- MOC : Cast Iron
- Stuffing Box Sealing : Gland Pack
Applications :
- Irrigation
- Water Supply
- Circulating Water for Thermal and Nuclear Power Plants
- Fire Fighting
- Flood Control
- Storm water
- Sump service
