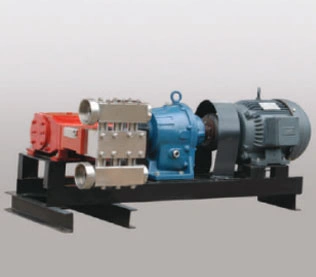

Triplex Plunger Pump (API 674): Tripos Pumps

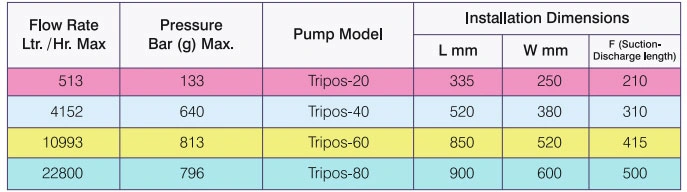

Technical Specifications
Features :
- Power end parts are lubricated by splash type arrangement or forced lubrication
- Crank shaft is made of high-quality forged steel and it is supported by antifriction bi-metallic bearings. Sturdy balanced design, for easy maintenance.
- High performance non return valves, on suction and delivery side.
- Highly convenient for maintenance
- Flow rate is fixed capacity
Material of Construction Offered :
- SS304/SS304L
- SS316/SS316L
- Carbon Steel
- Alloy20
- Hastalloy B/C
- Any other special alloy
Options :
- Jacketed Head for heating or cooling the liquid being pumped
- Automatic flow variation by Variable Frequency Drive (VFD)
- Belt Pulley Drive/Gearbox
List of Accessories :
- Strainer
- Pressure Relief Valve
- Calibration Pot
- Pulsation Dampener
- Local Control Panel
