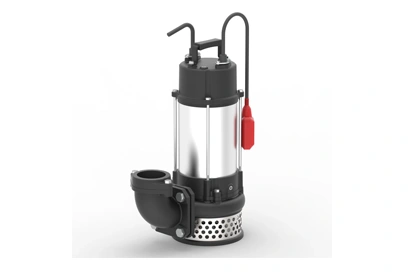

Drainage Pumps (LAP Series)
The LAP series are close coupled, submersible drainage pumps.
Salient Features :
- New design for light weight, elegant shape with best quality.
- Unfastening the bolts between the oil casing and the upper pump casing allows the body to be separated for easy maintenance.
- All pumps are furnished with double mechanical seal.
- All pumps up to 0.75 kW have carbon/ceramic sealing faces at both water end and motor end. All pumps starting with 1.5 kW and above have Sic sealing faces at the water end and carbon/ceramic sealing faces at the motor end.
- Available with Sic/Sic mechanical Shaft seal for pumping sandy water for 0.75 kW (optional).
Specifications Technical Data :
- Flow Range : Upto 60 m³/Hr
- Head Range : Upto 29 meters
- Rating : Upto 2.20 kW
- Rated Speed : 2900 RPM
- MOC : Grey Iron, Stainless Steel
- Stuffing Box Sealing : Mechanical Seal
Applications :
- Slushy water
- Waste water without solids
- Sump drainage
- Drainage application, flood control
- Dewatering for fish pond or basement
