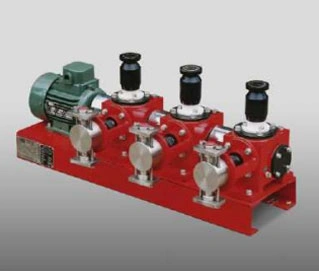

Plunger Dosing Pump (API 675)
Technical Specifications
Features :
- Plunger Type Dosing Pump with Gland Packing
- Precise metering devices
- Metering accuracy is almost independent of back pressure
- Flow rate is linear to stroke length variations
- External arrangement for flushing the gland packing (optional)
Material of Construction Offered :
- SS304, SS304L, SS316, SS316L
- Hastalloy B/C
- Alloy 20
- Carbon Steel
- Gland Sealing - PTFE
- Any other special alloy
Options for the pump include :
- Multiple heads with identical or different outputs, for each head using single drive.
- Jacketed Head for heating or cooling the liquid being pumped
- Automatic flow variation by receiving 4-20 mA signal from the process.
List of Accessories :
- Strainer
- Pressure Relief Valve
- Calibration Pot
- Pulsation Dampener
- Auto Stroke Actuator
- Local Control Panel
- Level Gauge
