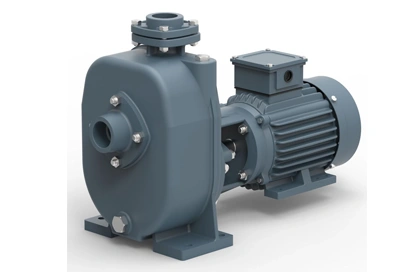

Self-Priming Mud Pump, Solids Handling, Close Coupled Pumps (LBM Series)
The LBM series are self-priming, horizontal, single-stage, centrifugal, close coupled end-suction pumps.
Salient Features :
- The pump casing shall be of Cast Iron material grade FG 260 as per IS 210 / ISO 186 and shall have axial suction and radial discharge port.
- The pumps shall have non-clogging open type impeller with material of construction of Cast Iron FG 260 (standard supply), CF8 & CF8M.
- The pump shaft sealing will be with gland packing except for pump up to
1 hp rating shall be with mechanical shaft seal.
- The Motor will be suitable for the following power supply 3 phase, 415 volts, 50 Hz & 1 phase, 240 volts, 50 Hz.
- The pump shall have back pull out design so as to enable the rotating parts to be removed and serviced without dismantling the suction and discharge pipe work.
Specifications Technical Data :
- Flow Range : Upto 52.2 m³/Hr
- Head Range : Upto 24 meters
- Rating : Upto 3.7 kW
- Rated Speed : 2900, 1450 RPM
- MOC : Cast Iron
- Stuffing Box Sealing : Mechanical Seal
Applications :
- Marine - Pumping water from docks, ports, vessels
- Industrial - Pumping petroleum products, chemical effluents, Sewage, ash-water etc.
- Civil construction - Dewatering foundations, trenches and pits.
- Mobile Machinery - Cooling water for marine engines and shovels.
- Public utilities - Sewage pumping.
