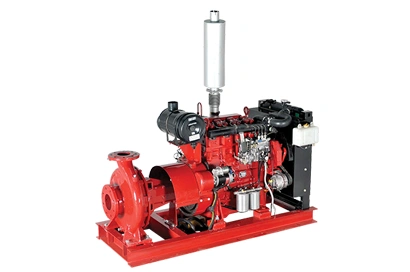

End Suction Long Coupled Diesel Driven Fire pumps (LBSD Series)
The LBSD series are horizontal, single-stage, end-suction, back pull out long coupled centrifugal pumps with diesel engine for firefighting applications.
Salient Features :
- The pump shall be designed for clean and clear room temperature water to be used in fire fighting application.
- The pump casing shall be of Cast Iron grade FG 260 as per IS 210 / ISO 186 with inline suction and discharge port.
- The pump casing shall have threaded ports near suction and delivery flanges for installing suction and discharge pressure gauges. The pump shall also have a threaded drain port at the bottom of casing for draining the pump during maintenance.
- The pumps shall have closed type impeller with Bronze LTB2 (standard supply) & Cast Iron FG 260 material.
- The diesel engine shall be supplied with Radiator cooled type(standard supply) or Heat exchanger type.
- The diesel engine shall be supplied with 12 volts DC or 24 volts DC battery and connection cables..
- The pump accessories Suction and discharge pressure gauge & Casing relief valve shall be supplied on request.
- The entire pump set including base plate and diesel engine are to be painted with RAL3002 shade.
Specifications Technical Data :
- Flow Range : Upto 681 m³/Hr
- Head Range : Upto 14.2 bar
- Rating : Upto 600 HP
- Rated Speed : 2900, 1450 RPM
- MOC : Cast Iron
- Stuffing Box Sealing : Mechanical Seal
Applications :
- Commercial complexes and high rise buildings
- Petrochemical industries and Gas plants
- Airports and ports
- Jetties
- Marine applications
- Power stations and transformer stations
- Chemical industries
- Manufacturing plants
- Fire-work industries
- Warehouses / godowns.
