Seal Less Self Priming Magnetic Drive Pumps (SP SERIES)
Principles of self-prming pumps
During pump installation, the priming housing is filled through the fill port. As priming begins, air in the suction piping mixed with liquid in the priming chamber forms a vacuum in the inner volute. As they separate, the air rises out of the discharge piping while the liquid returns to the priming chamber. The circulation process continues until liquid replaces all the air in the suction piping, beginning the pumping process.
When the pump is shut off, the priming chamber’s gooseneck design ensures that enough liquid is retained for efficient re-priming.
SP SERIES APPLICATIONS DIAGRAM

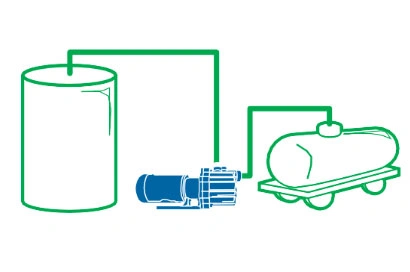

1.Transfer from top of rail cars or tanker trucks to bulk
storage.

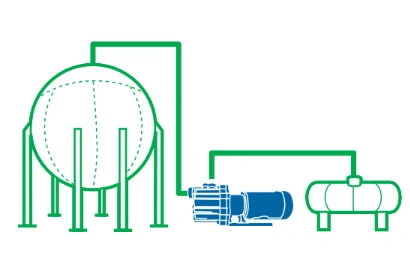

2.Transfer from bulk storage to process or day tanks.

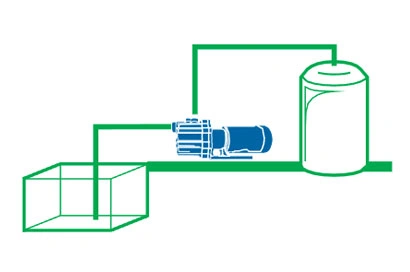

3.Pump from underground sumps or pits to double containment tanks.

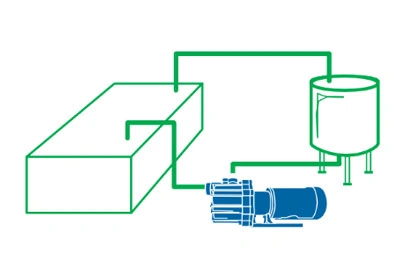

4.Pump from surface finishing tank through filters.
Salient Features :
- Sealless mag-drive design
- Big on power - short on energy consumption
- Deep-lift capabilities (up to 25 feet/7.6 meters)
- Lightning-fast priming (18 feet/5.5 meters in 90 seconds)
- Ease of operation
- No seal replacement and no leaks
- Corrosion-resistant materials handle the most difficult applications
Specifications :
- MOC : Polypropylene, PVDF
- Flow Range : 47.9 M³/Hr
- Head : 37.9 meters
- Maximum Viscosity : 50 cP
- Maximum Temprature : Polypropylene - 180° F (82° C)
PVDF - 220° F (104° C)
Applications :
Sumps
- Underground storage tanks
- Rail cars and tanker trucks
- Over-the-wall applications
- Double containment tanks
- Piping systems that tend to have trapped or entrained air
