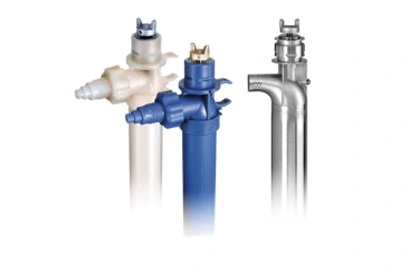

Drum Pumps (PF SERIES)
Unique double suction impeller provides high flow and high head.
Featuring multiple material options and connections, the PF Series is designed for container-to-container transfer of acids, corrosives, and chemicals.
Salient Features :
- Interchangeable with motors
- Greater flow control with variable orifice discharge
- FDA-compliant option
- Built-in hose and cord clips
- Vabriable Speed Motors
- ATEX Certifications available
Specifications :
- MOC : Polypropylene, Pure PVDF, PVDF, Stainless Steel 316
- Flow Rates : 151 LPM
- Head : 24 meters
- Maximum Viscosity : Upto 2000 cP with electric / 330 cP air motor
- Maximum Specific Gravity : 1.8
- Tube Diameter : 2” (5.1 cm)
- Discharge : 1” (2.5cm)
- Tube Lengths : 27" (69cm), 40" (102cm), 48" (122cm), 54” (137cm), 60" (152cm), 72" (183cm)
- Maximum Temprature : Polypropylene : 160° F (71° C)W
PVDF : 120° F (49° C)
Stainless Steel 316 : 220° F (105° C)
Applications :
- Acids, bases
- Solvents
- Flammables
- Water treatment chemicals
- Cleaners
- Plating solutions
- Kidney dialysis solutions
- Diesel exhaust fluid (DEF)/AdBlue
