Progressive Cavity Drum Pumps (BT / HVDP SERIES)
High Viscosity/High Head

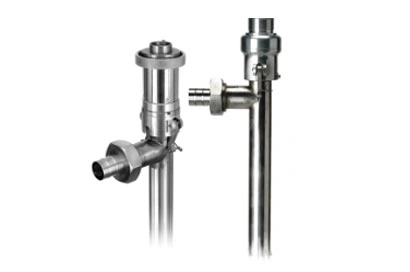

BT Series - High viscosity sealed design with PTFE screw-type lifting compressors for liquids up to 15,000 cP HVDP Series- Progressive cavity, positive displacement, mechanically sealed pump for high viscosity liquids up to 20,000 cP (HR model - pictured) or 100,000 cP (LR model). FDA-compliant material options.
Salient Features :
- Prograssive Cavity Positive Displacement pumps
- Unique camlock feature for quick disassembly
- Optional foot design for drums with liners
- FDA-compliant options
- Bellows Type 21 mechanical seal
Specifications :
- MOC : Stainless Steel 316
- Flow Rates : 38 LPM
- Head : BTS : 61 meters
HVDP : 81 meters - Maximum Viscosity : BTS : 15,000 cP
HVDP-HR : 20,000 cP
HVDP-LR : 100,000 cP - Maximum Specific Gravity : 1.8
- Tube Diameter : 2” (5.1 cm)
- Discharge : BTS : 1-1/2” (3.8 cm)
HVDP : 1-1/2” (3.8 cm) or 2” (5cm) - Tube Lengths : TTS - 27” (69cm), 40” (102cm), 48” (122cm) STTS - 40” (102cm)
- Maximum Temprature : BTS : 200°F (93° C)
HVDP 180°F (82° C)
Applications :
- Waxes
- Oils
- Resins
- Solvents
- Adhesives
- Silicone
- Lotions
- Honey
- Juice concentrate
- Hair & bath gel
- Corn syrup
- Polymers
- Gear Lubi
- Glycerin
