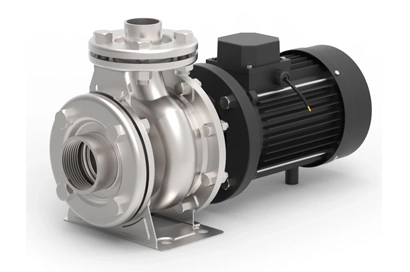

LCS Series Close-coupled Stainless Steel Centrifugal Pumps (Metallic Pumps)
The LCS Sereis are non-self prming, horizontal, stainless steel single-stage, end-suction centrifugal pumps.
LCS are single stage close-coupled pumps with suction and discharge flanges confirm to PN 16 as per DIN standards EN 1092-2. In a broad flow range it has high operating efficiency and low operating cost suitable for water supply purified-water system and come industrial applications such as medicine, food, fine chemical industry, papermaking, rinsing, spraying, etc, it can also be used when liquid being pumped is not corrosive to AISI 304.
Salient Features :
- The pump casing, impeller and shaft shall have material of construction of fabricated AISI 304 sheet metal.
- The Pump shaft sealing will be by mechanical shaft seal of Carbon/SiC/Viton/AISI 316 construction suitable for 10 bar pressure rating and water temperature from 0 to +140 deg. C.
- The pump shall be close coupled with a totally enclosed fan cooled type (TEFC) Induction motor, with F class insulation, S1 duty and IP55 protection, suitable for 3 phase, 415 volts, 50 and 60 Hz power supply.
- The pump shall have back pull out design so as to enable the rotating parts to be removed and serviced without dismantling the suction and discharge pipe work.
Specifications Technical Data:
- Flow Range : Upto 120 m³/Hr
- Head Range : Upto 57 meters
- Rating : Upto 22 kW
- Rated Speed : 2900 RPM
- MOC : SS-304(CF8)
- Stuffing Box Sealing : Single Mechanical Seal, Double Mechanical Seal
Applications :
- Water Supply.
- Pressure boiler feeding.
- Pure water treating systems.
- Pharmaceutical and food stuff.
- Refining chemical industries.
- Industrial washing and sprinkler system.
