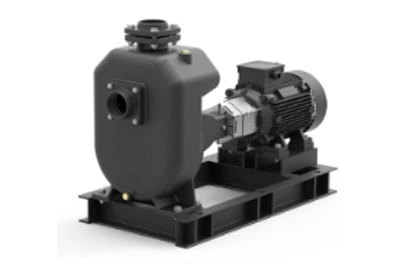

Self-Priming Mud Pump, Solids Handling, Long Coupled Pumps (LBM Series)
The LBM series are self-priming, horizontal, single-stage, centrifugal, long coupled end-suction pumps.
Salient Features :
- Excellent quick automatic pumping action without foot valve up to 8 metres at mean sea level
- Back pull-out design which simplifies inspection and maintenance
- Rotating parts are dynamically balanced which ensure vibration free performance and enhanced life
- Better efficiency due to good hydraulic design
- Automatic air release during priming
- Can withstand wide voltage fluctuations
- Class-F motor insulation which can handle higher motor temperature
- Thermally protected motors which prevents motor from burn out
- Non-clogging impeller flow design which can handle suspended solids up to 20 mm
- Construction: Bare pump/Motor coupled/Engine-coupled.
Specifications Technical Data :
- Flow Range : Upto 305 m³/Hr
- Head Range : Upto 37 meters
- Rating : Upto 18.5 kW
- Rated Speed : 2900, 1450 RPM
- MOC : Cast Iron
- Stuffing Box Sealing : Mechanical Seal
Applications :
- INDUSTRIES: Petrochemical, fertilizers, pharmaceutical, dyes & intermediate industries, effluent treatment plants, food processing plants, sewage plants, starch, paper, sugar plants, thermic fluid circulations, fatty acid distillation plants.
- PUBLIC UTILITIES: For pumping muddy water, sewage and polluted liquids, dewatering of swimming pools.
- CIVIL ENGINEERING: Flood drainage, sewage pumping, fire fighting, dewatering of canals and ponds.
- CONSTRUCTION INDUSTRIES: Dewatering of excavation, small pits, basements, trenches, construction sites.
- MARINE: Loading and unloading, dewatering of docks & vessels, bilge pumping.
- WASTE TREATMENT: Pumping polluted, hot or corrosive waste water containing sand, mud or solids, in suspension, dosing neutralizing liquid, pumping out settled sludge.
